Mesh-Grid Kits

Let your Mesh-Grid reach its

full potential

A Kit For Every Household

In an Okra Mesh-Grid, each household is equipped with a single Kit. The size of the Kit installed depends on it’s individual energy needs.

SVG Hover Interaction

Learn More in Our Technology Overview

Browse Our kits

No guesswork, you get everything you need on site down to the smallest screw. We sell you a turnkey mesh-grid system, optimized and tested for Plug and Play deployment.

N/A

N/A
‍

150W MSW

Basic household usage: Lighting, phone charging & other small loads

1 x 200Wp

12.8V 50Ah LFP
‍

600W PSW

Everything in SP, plus: TV & other small productive appliances

1 x 450Wp

N/A
‍

150W MSW

Everything in M20, plus: Water pumps, washing machines & medium-usage productive appliances

2 x 450Wp

25.6V 100Ah LFP
‍

1200W PSW

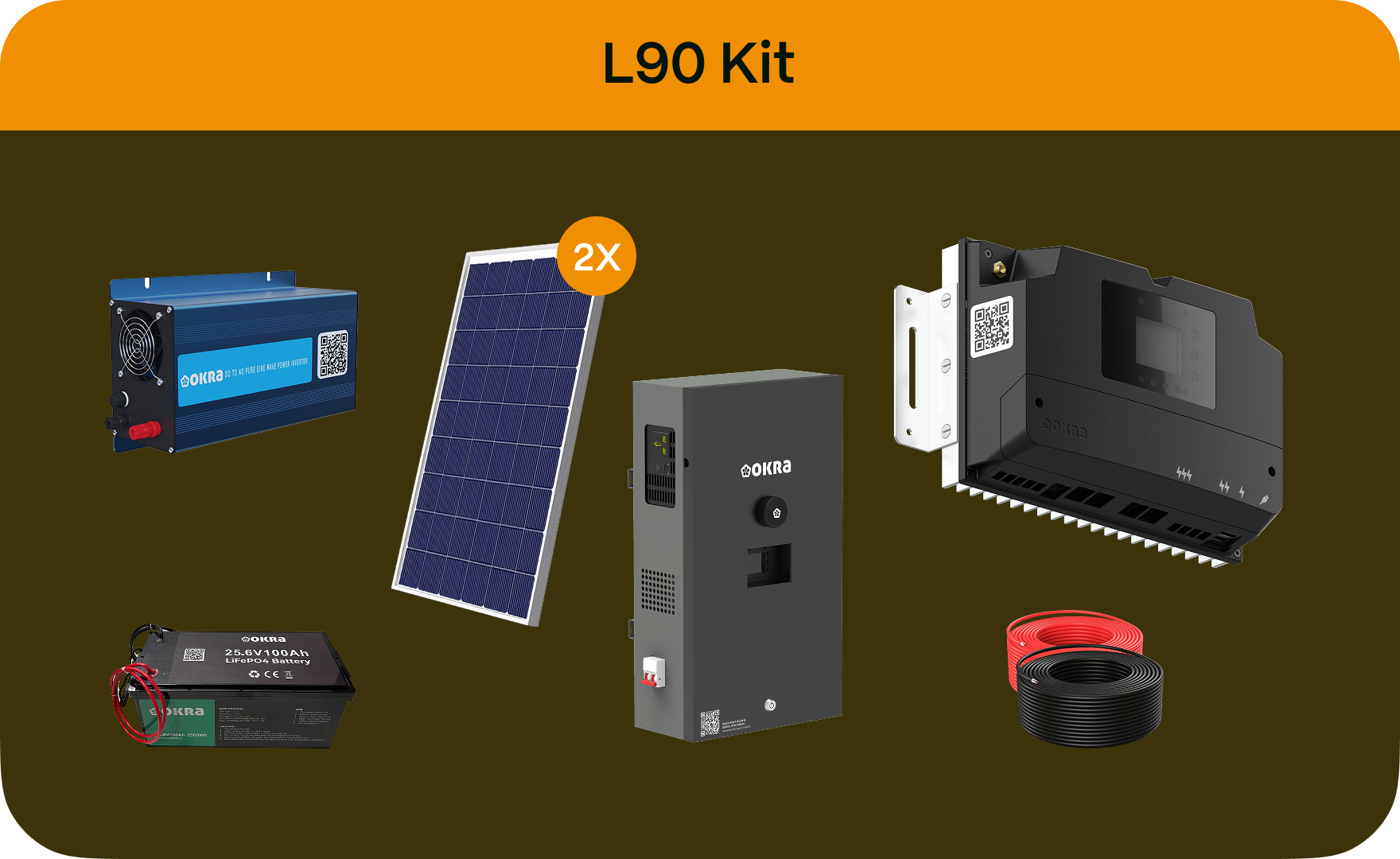

Everything in L45, plus: Appliances usually powered by generators & small businesses

4 x 450Wp

2 x 25.6V 100Ah LFP

2500W PSW

Everything in L90, plus: Electric cookstoves, power tools and multiple appliances concurrently.

Load More Specs

0 - 1kWh/day

(dependent on # of Spokes connected to Hub)

None
‍

Okra Pod
‍

20-30m 2.5mm2 2C Cu PV1-F cable

None
‍

Connectors, fasteners and backing board.
‍
‍

4x 9W light bulbs with switch, holders & cable

N/A
‍
‍

N/A

1 Year Included
‍

0.5kWh-1kWh /day
‍
‍

None
‍

Okra Pod
‍

20-30m 2.5mm2 2C Cu PV1-F cable

7.5m 2.5mm2 2C Cu PV1-F cable

Panel mounting, connectors, fasteners, surge protection and backing board.

4x 9W light bulbs with switch, holders & cable

12 Years product 25 Years linear power

3 Years

1 Year Included
‍

1kWh-2.25kWh
/day
‍

Sprout (Anti-Tamper Unit)

Okra Pod
‍

20-30m 2.5mm2 2C Cu PV1-F cable

7.5m 4mm2 2C Cu PV1-F cable

Panel mounting, connectors, fasteners, surge protection and backing board.

4x 9W light bulbs with switch, holders & cable

15 Years
‍
‍

7 Years

1 Year Included
‍

2kWh-4.5kWh
/day
‍

Sprout (Anti-Tamper Unit)

Okra Pod
‍

20-30m 2.5mm2 2C Cu PV1-F cable

7.5m 4mm2 2C Cu PV1-F cable

Panel mounting, connectors, fasteners, surge protection and backing board.

4x 9W light bulbs with switch, holders & cable

15 Years
‍
‍

7 Years

1 Year Included
‍

4.5kWh-9kWh
/day
‍

2x Sprout (Anti-Tamper Unit)

2 x Okra Pod
‍

20-30m 2.5mm2 2C Cu PV1-F cable

15m 4mm2 2C Cu PV1-F cable

Panel mounting, connectors, fasteners, surge protection and backing board.

4x 9W light bulbs with switch, holders & cable

15 Years

‍

7 Years

1 Year Included
‍

¹ Indicative usage. Appliance support depends on individual characteristics.
² Actual amount depends on solar irradiation, etc.
^3,⁴ Custom length based on project needs

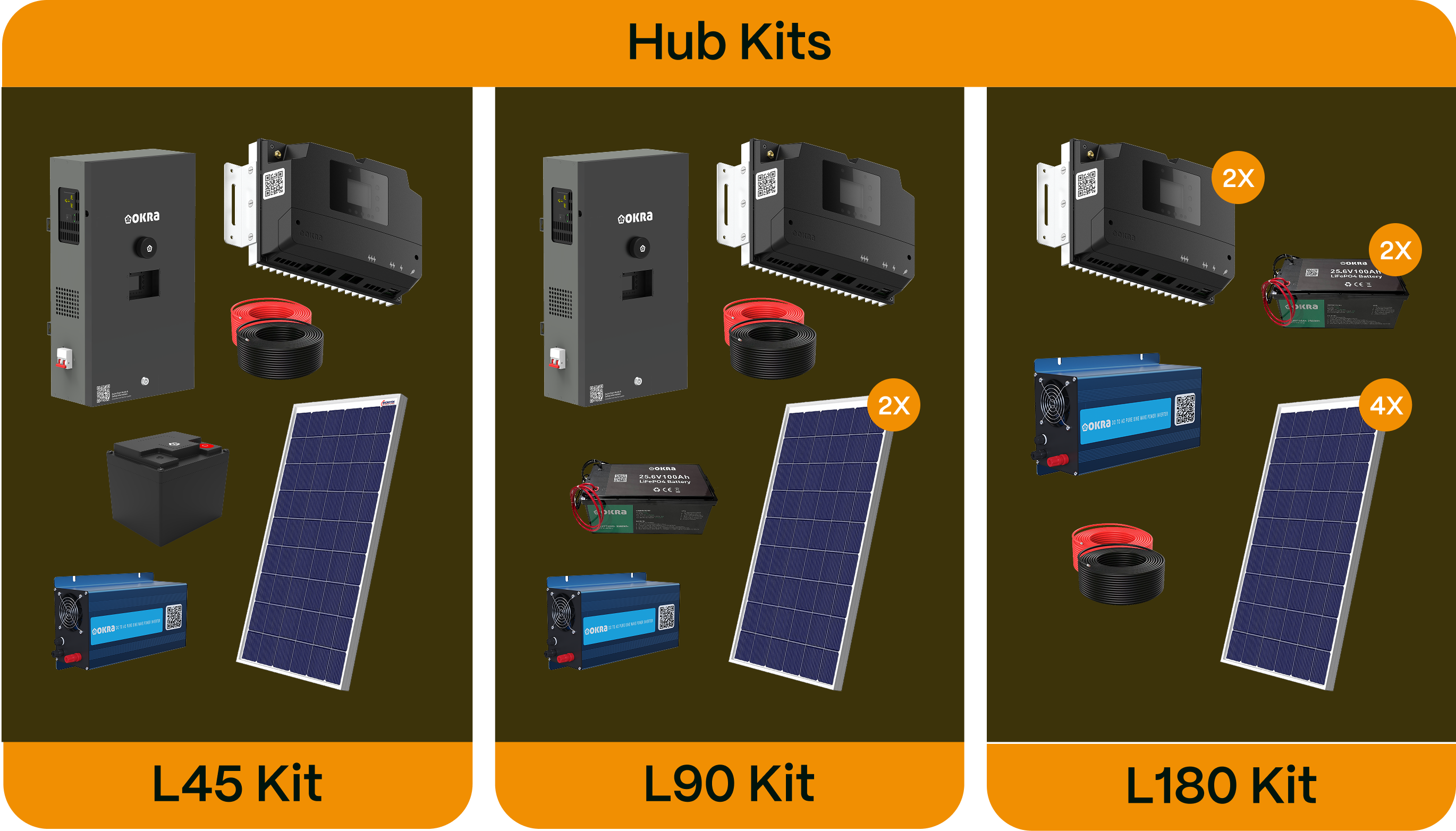

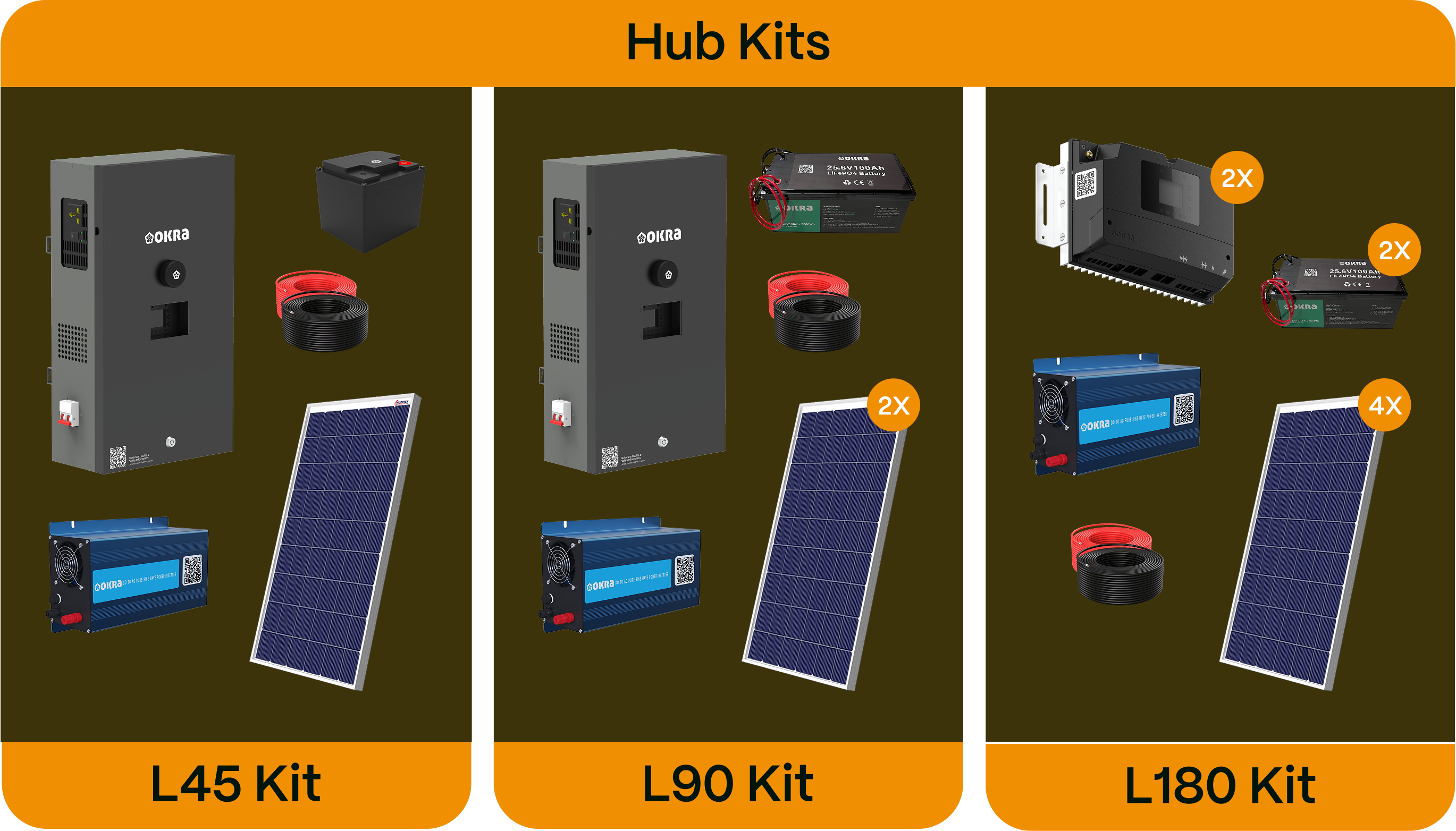

Browse Our kits

Included in each kit are 30-50 bespoke components, designed to streamline installation and minimize delays in the field. Each one, big & small, has been optimized, modified, and tested for Plug and Play deployments.

N/A

150W MSW

Basic household usage: Lighting, phone charging & other small loads

Load More Specs

0 - 1kWh/day

(dependent on # of Spokes connected to Hub)

None

Okra Pod
‍

20-30m 2.5mm2 2C Cu PV1-F cable

None

‍

Connectors, fasteners and backing board.

4x 9W light bulbs with switch, holders & cable

N/A
‍

1 Year Included

1 x 200Wp

12.8V 50Ah LFP

600W PSW

Everything in SP, plus:
TV & other small productive appliances

Load More Specs

0.5kWh - 1kWh/day

None

Okra Pod
‍

2.5mm2 2C Cu PV1-F cable
‍

Panel mounting, connectors, fasteners, surge protection and backing board.

4x 9W light bulbs with switch, holders & cable

12 Yrs (Panels)
25 Yrs (Linear power)

3 Years

1 Year Included

1 x 450Wp

N/A

150W MSW

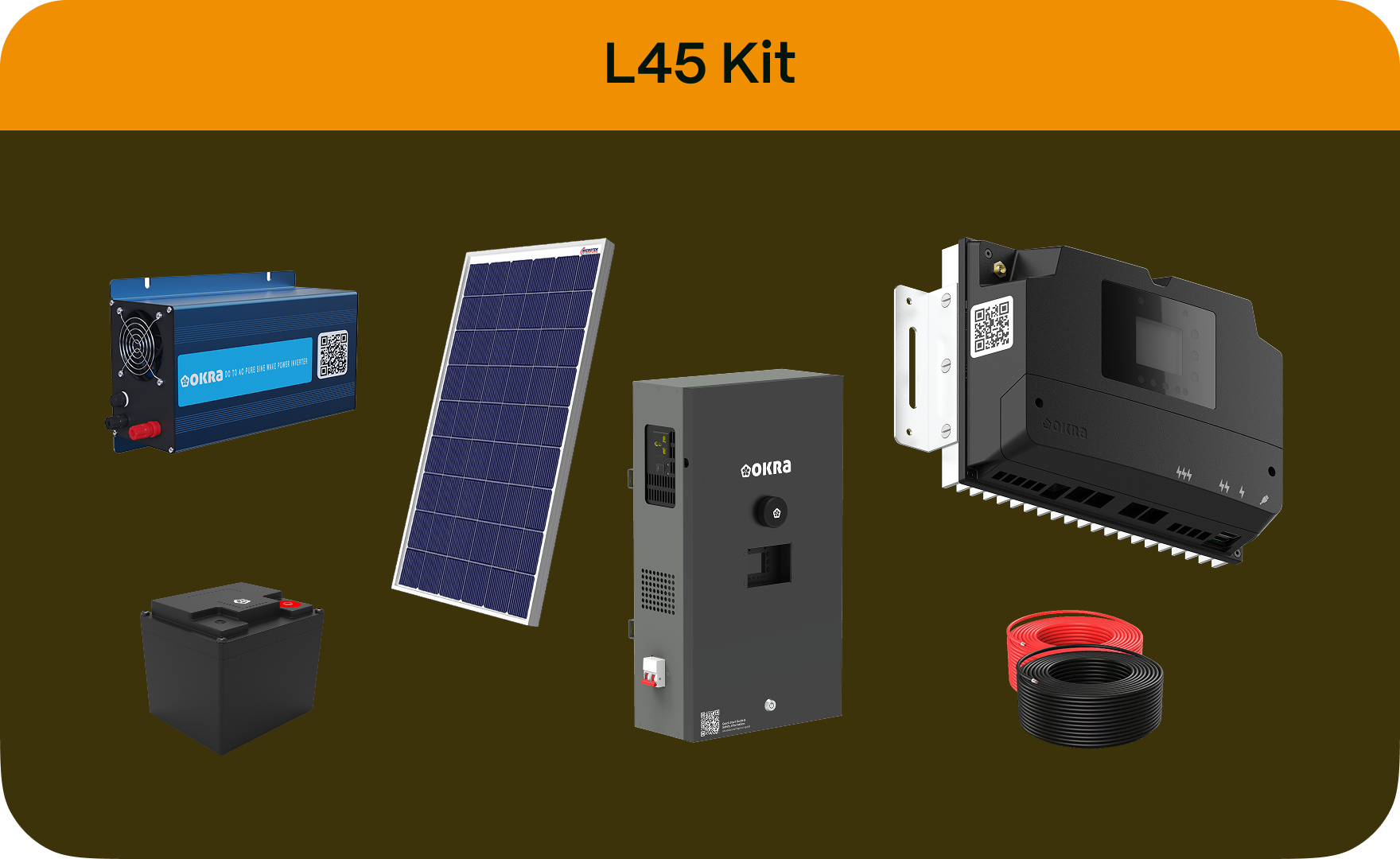

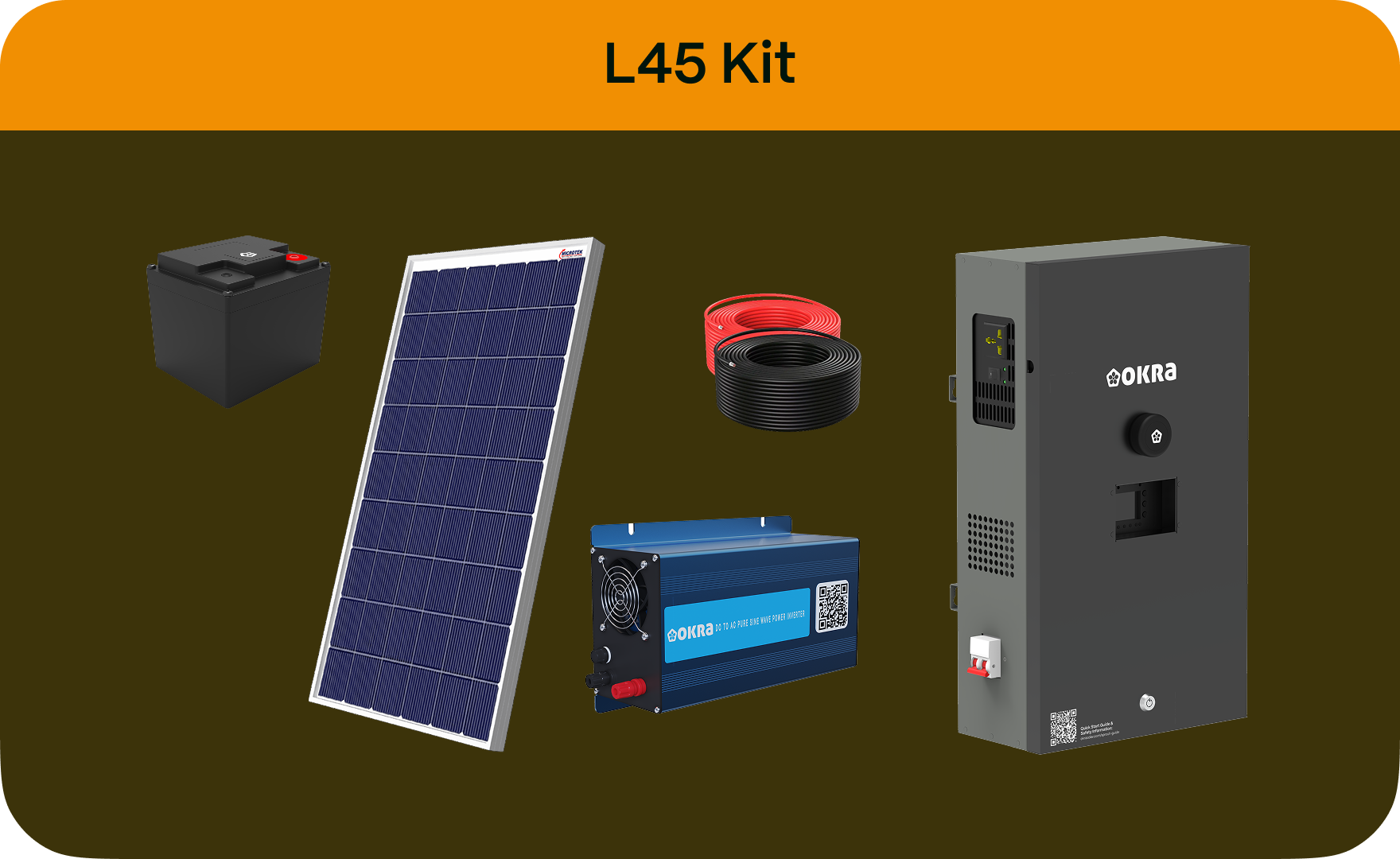

Everything in M20, plus:
Water pumps, washing machines & medium-usage productive appliances

Load More Specs

1kWh - 2.25kWh/day

Sprout (Anti-Tamper Unit)

Okra Pod
‍

2.5mm2 2C Cu PV1-F cable
‍

4mm2 2C Cu PV1-F cable
‍

Panel mounting, connectors, fasteners, surge protection and backing board.

4x 9W light bulbs with switch, holders & cable

12 Yrs (Panels)
25 Yrs (Linear power)

3 Years
‍

1 Year Included

2 x 450Wp

25.6V 100Ah LFP

1200W PSW

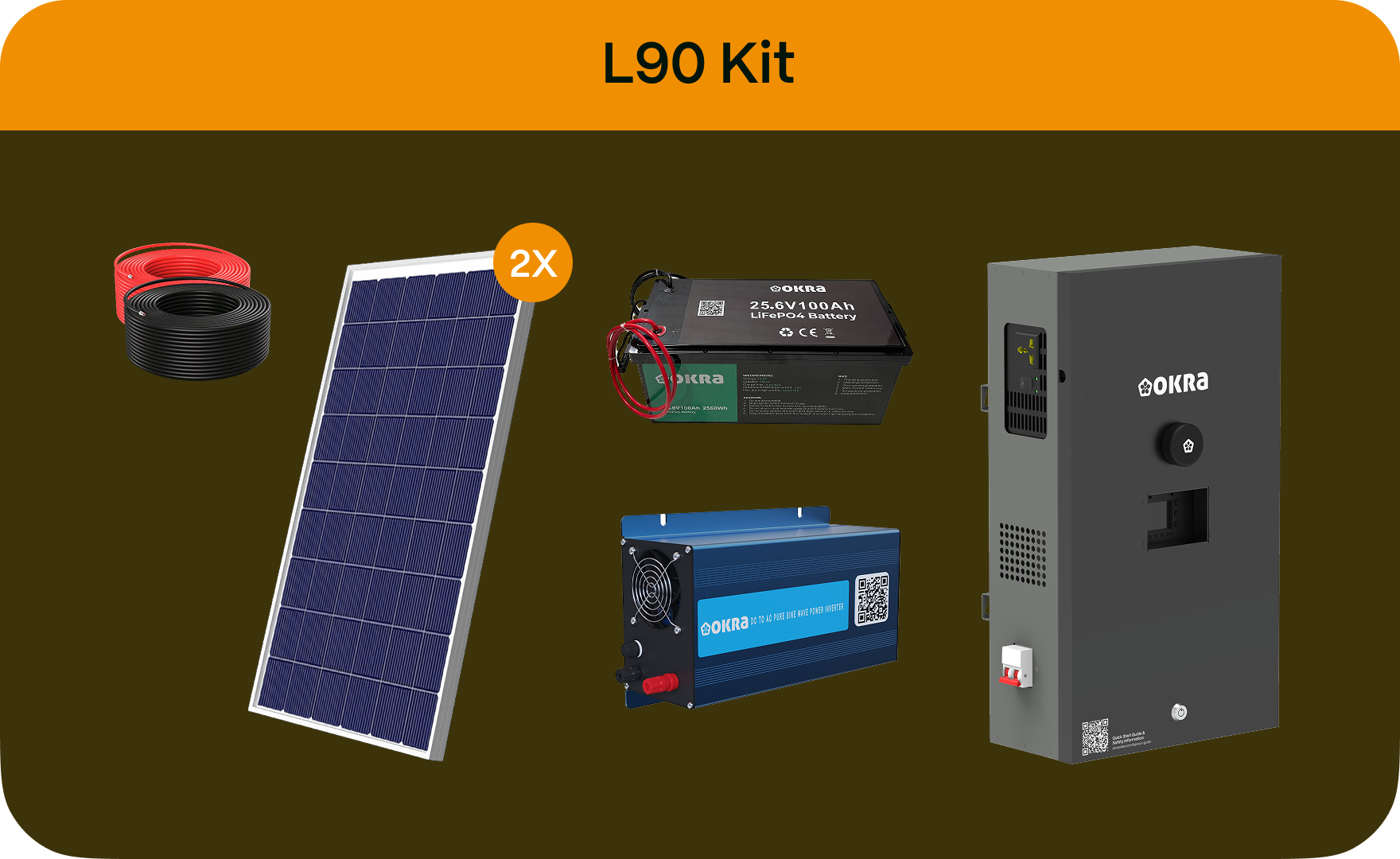

Everything in L45, plus:
appliances usually powered by generators & small businesses

Load More Specs

2kWh - 4.5kWh/day

Sprout (Anti-Tamper Unit)

Okra Pod
‍

2.5mm2 2C Cu PV1-F cable
‍

4mm2 2C Cu PV1-F cable
‍

Panel mounting, connectors, fasteners, surge protection and backing board.

4x 9W light bulbs with switch, holders & cable

12 Yrs (Panels)
25 Yrs (Linear power)

3 Years
‍

1 Year Included

4 x 450Wp

2 x 25.6V 100Ah LFP

2500W PSW

Everything in L90, plus:
Electric cookstoves, power tools and multiple appliances concurrently.

Load More Specs

4.5kWh - 9kWh/day

2x Sprout (Anti-Tamper Unit)

2x Okra Pod
‍

2.5mm2 2C Cu PV1-F cable
‍

4mm2 2C Cu PV1-F cable
‍

Panel mounting, connectors, fasteners, surge protection and backing board.

4x 9W light bulbs with switch, holders & cable

12 Yrs (Panels)
25 Yrs (Linear power)

3 Years
‍

1 Year Included

¹ Indicative usage. Appliance support depends on individual characteristics.
² Actual amount depends on solar irradiation, etc.
^3,⁴ Custom length based on project needs

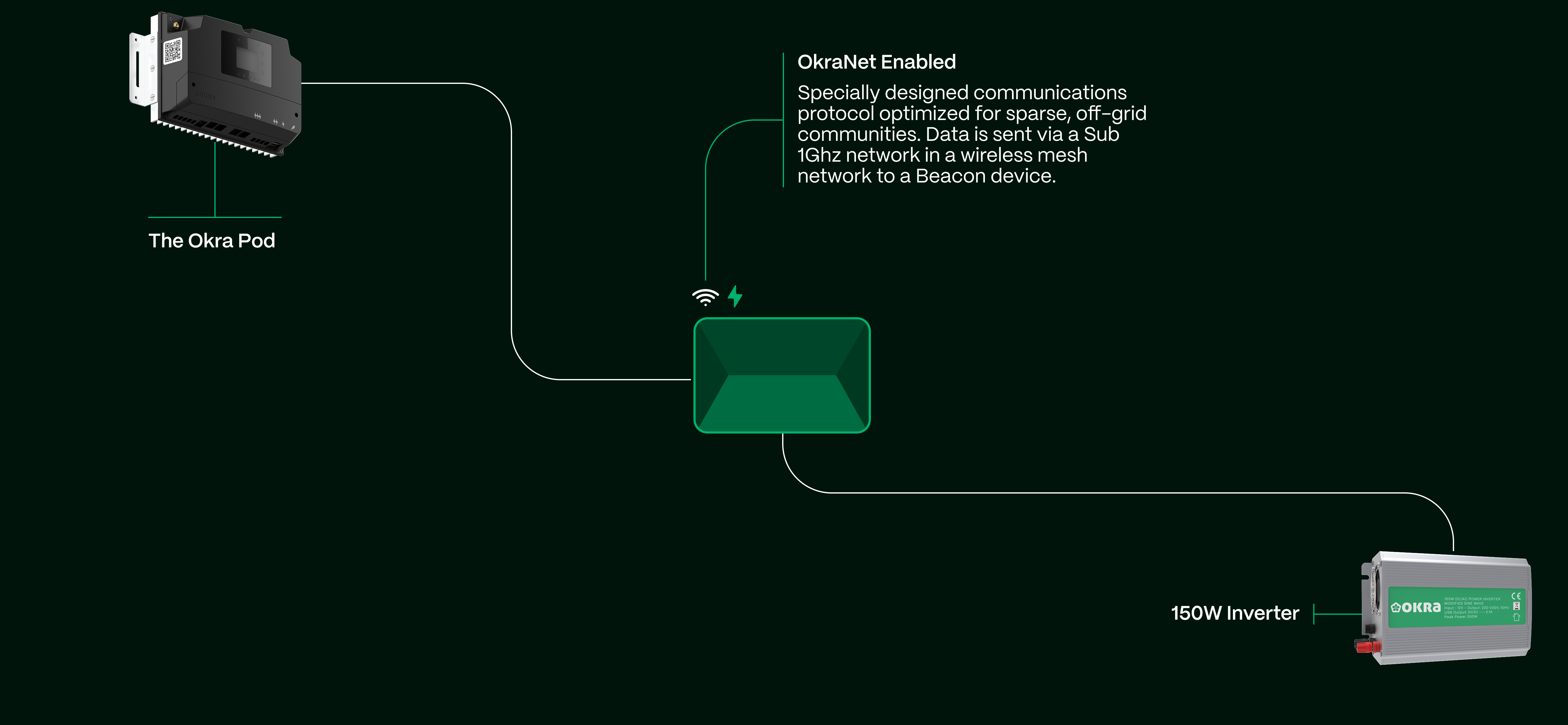

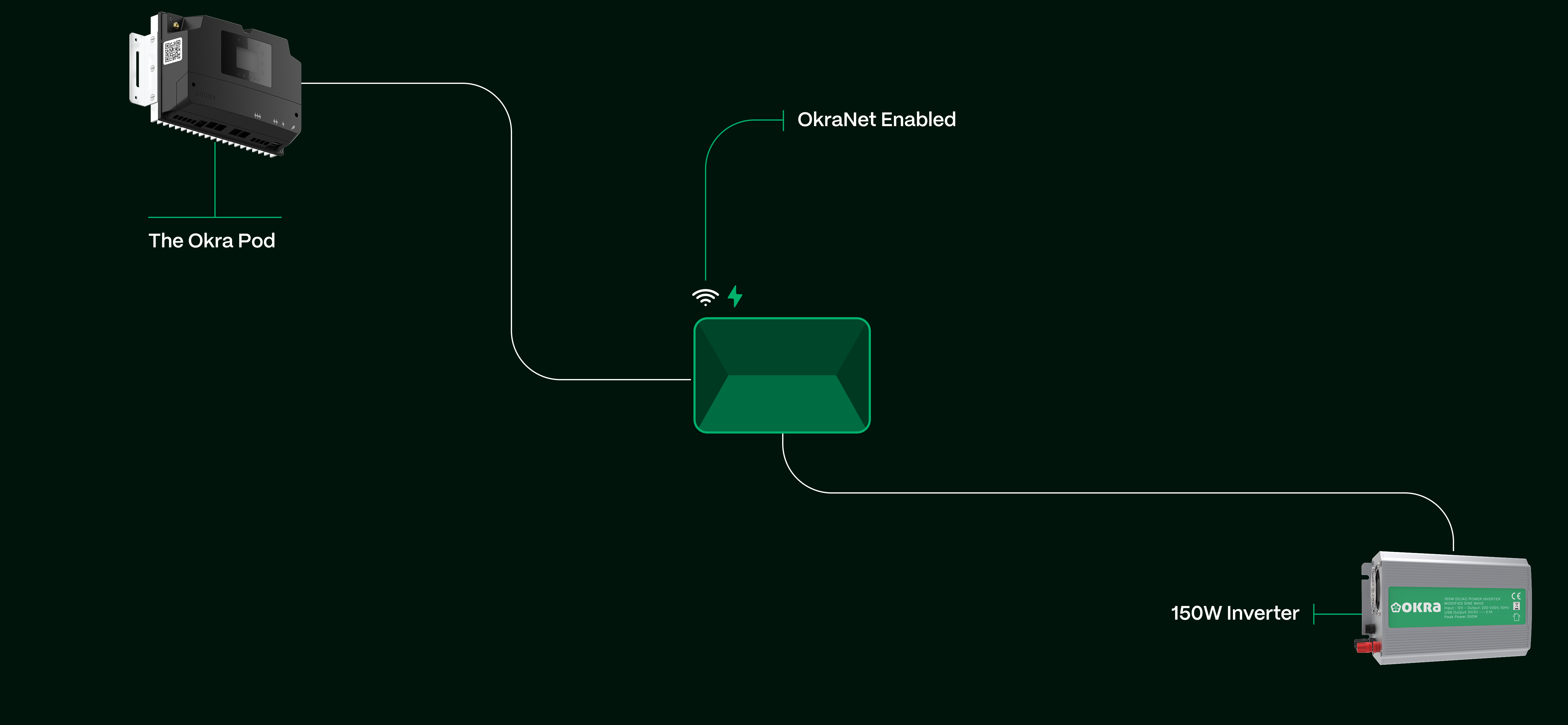

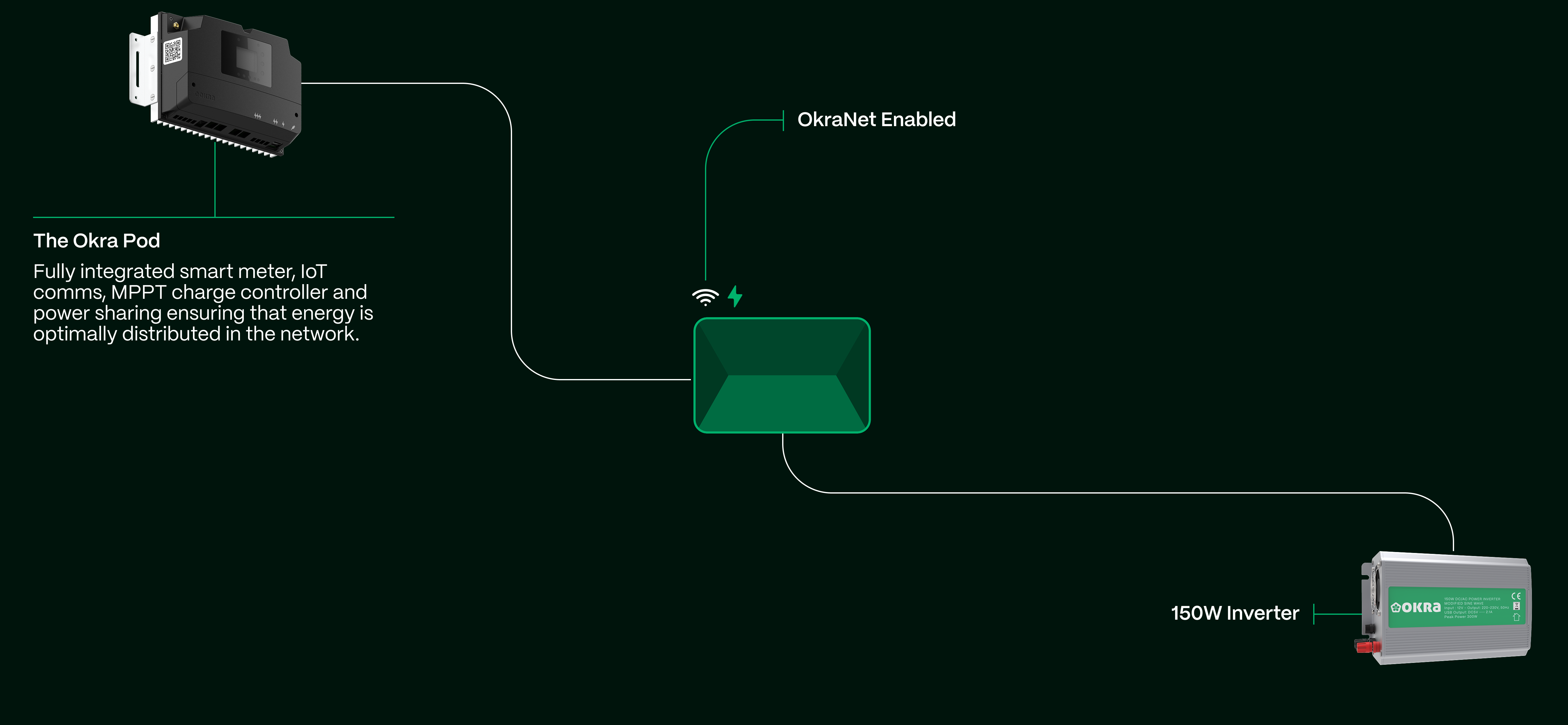

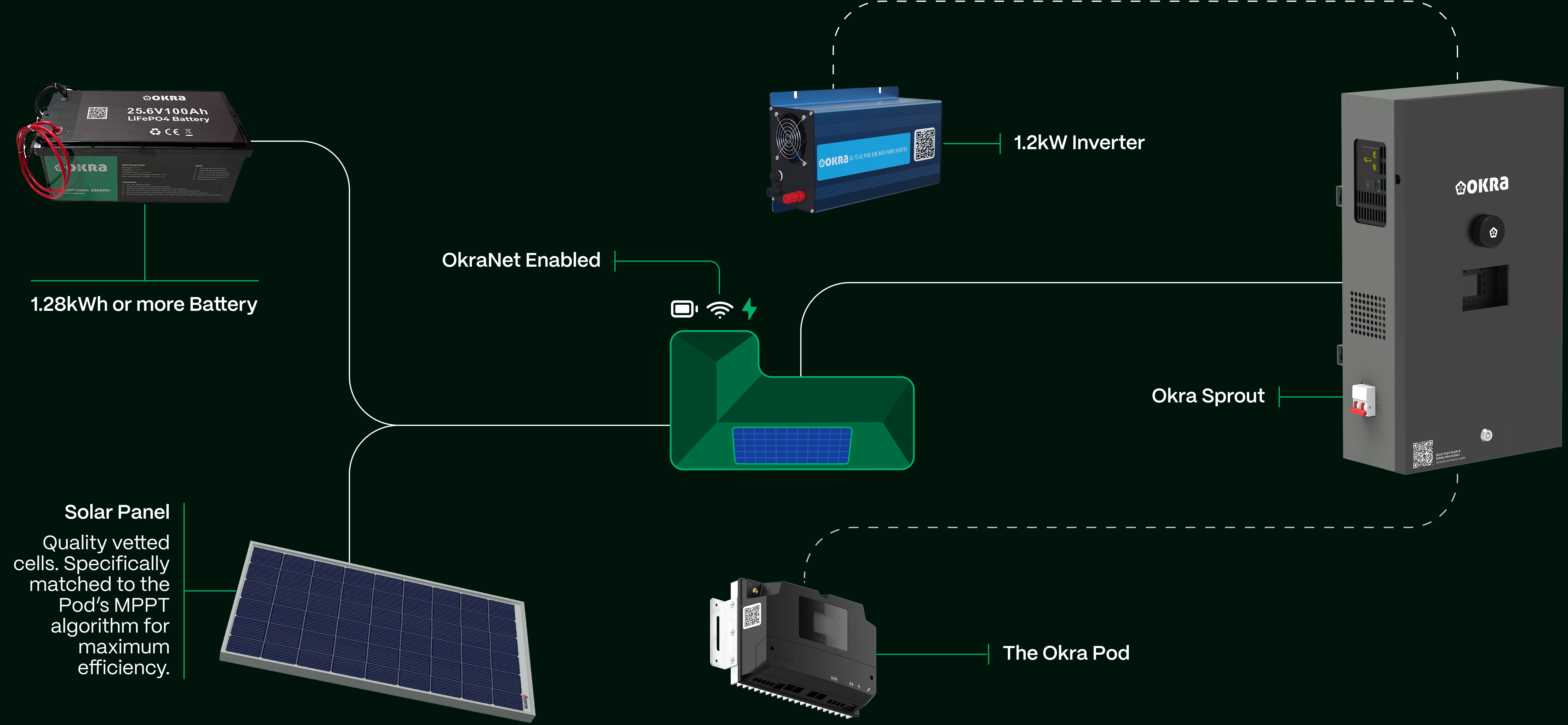

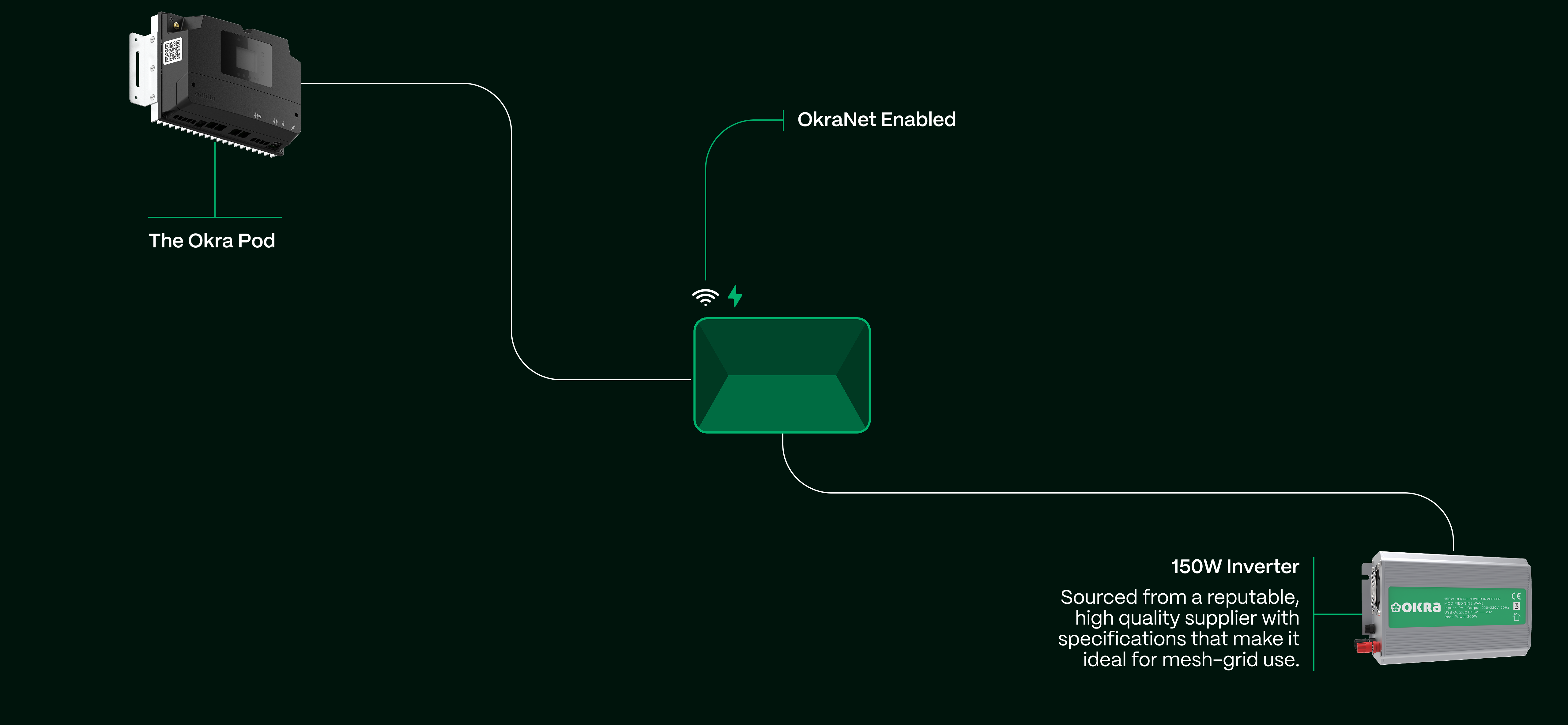

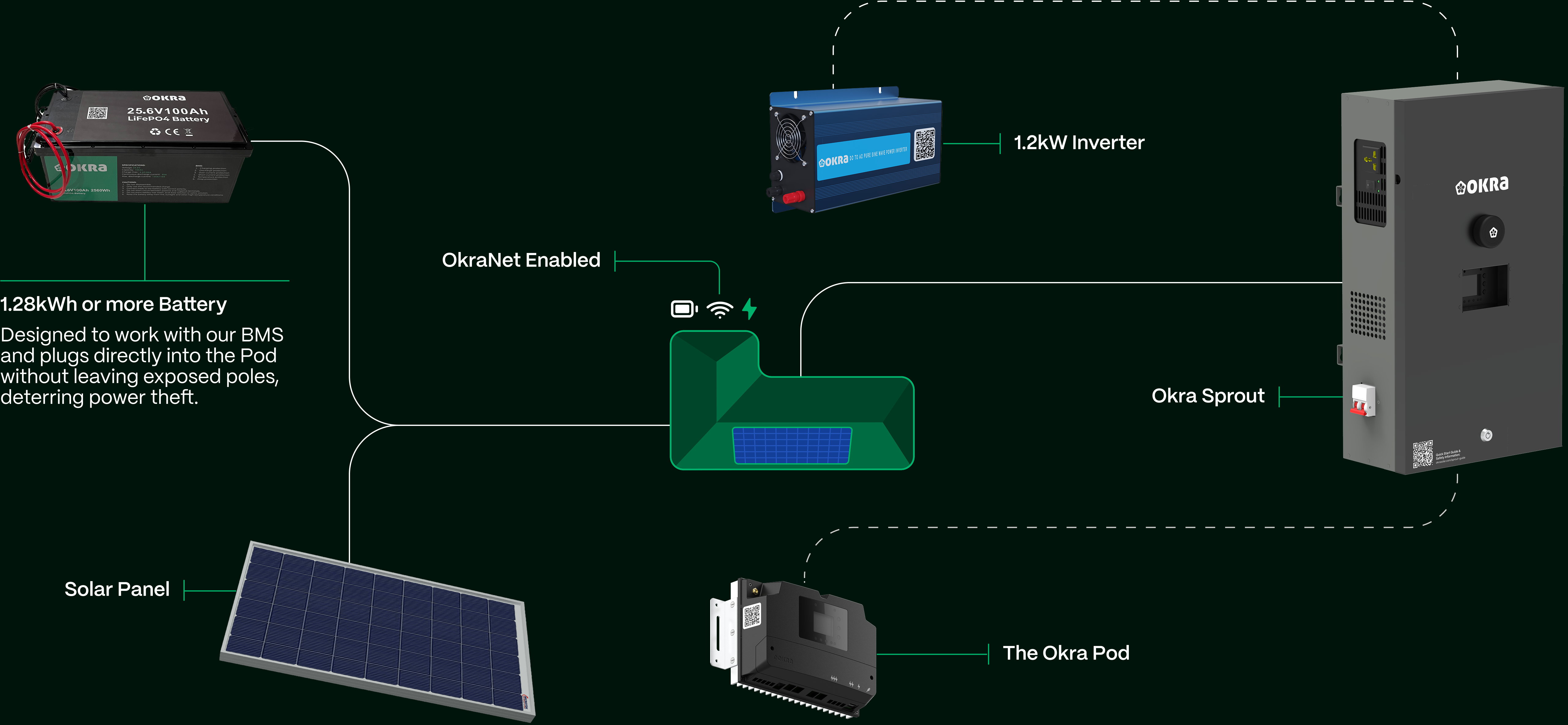

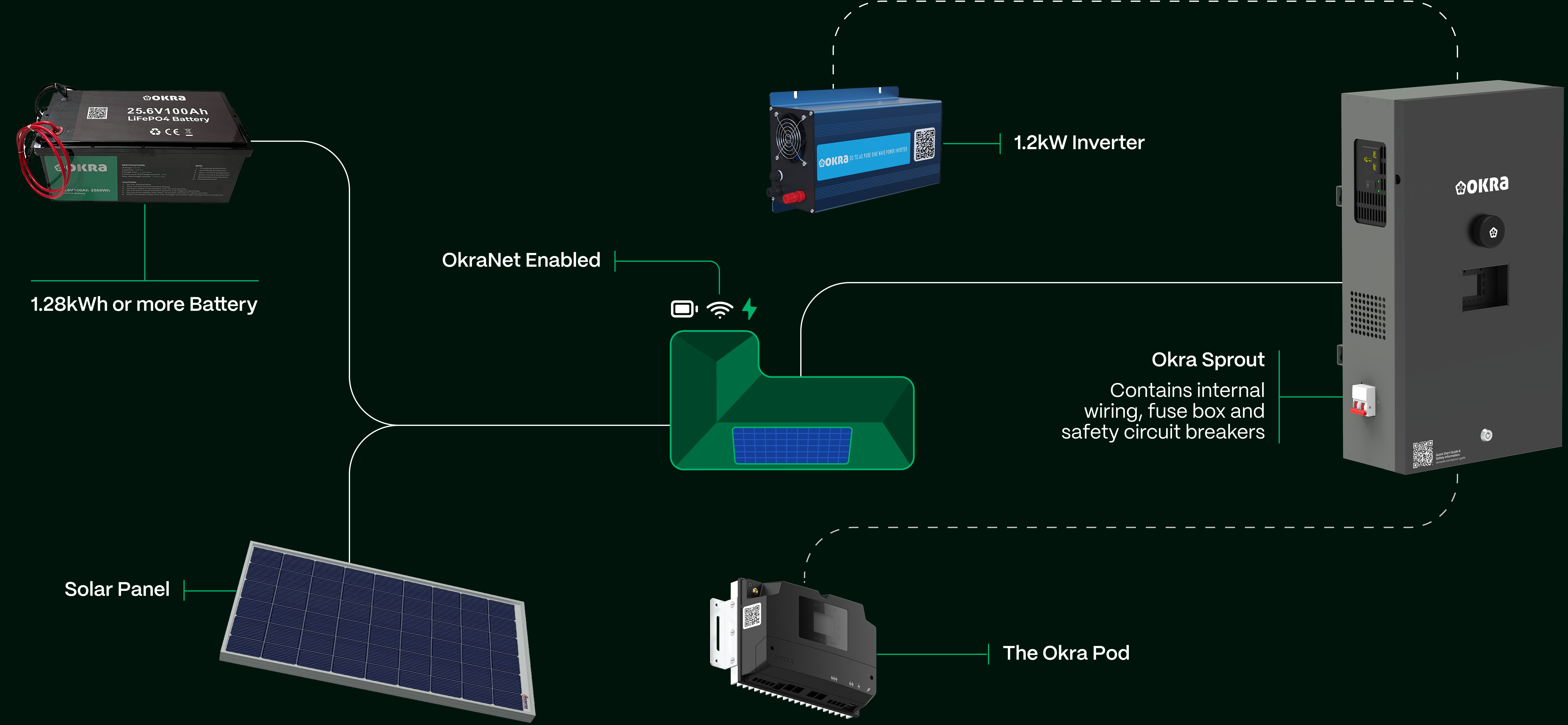

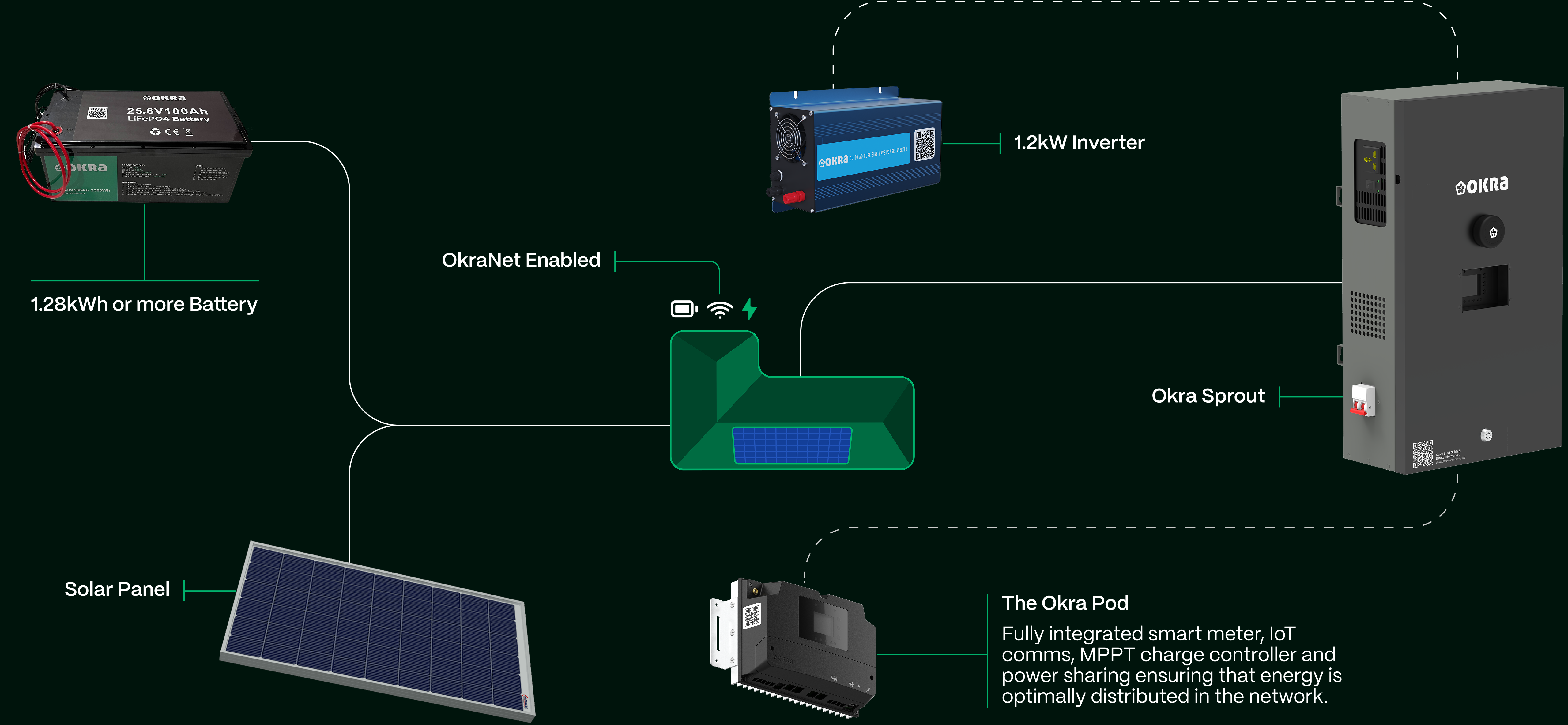

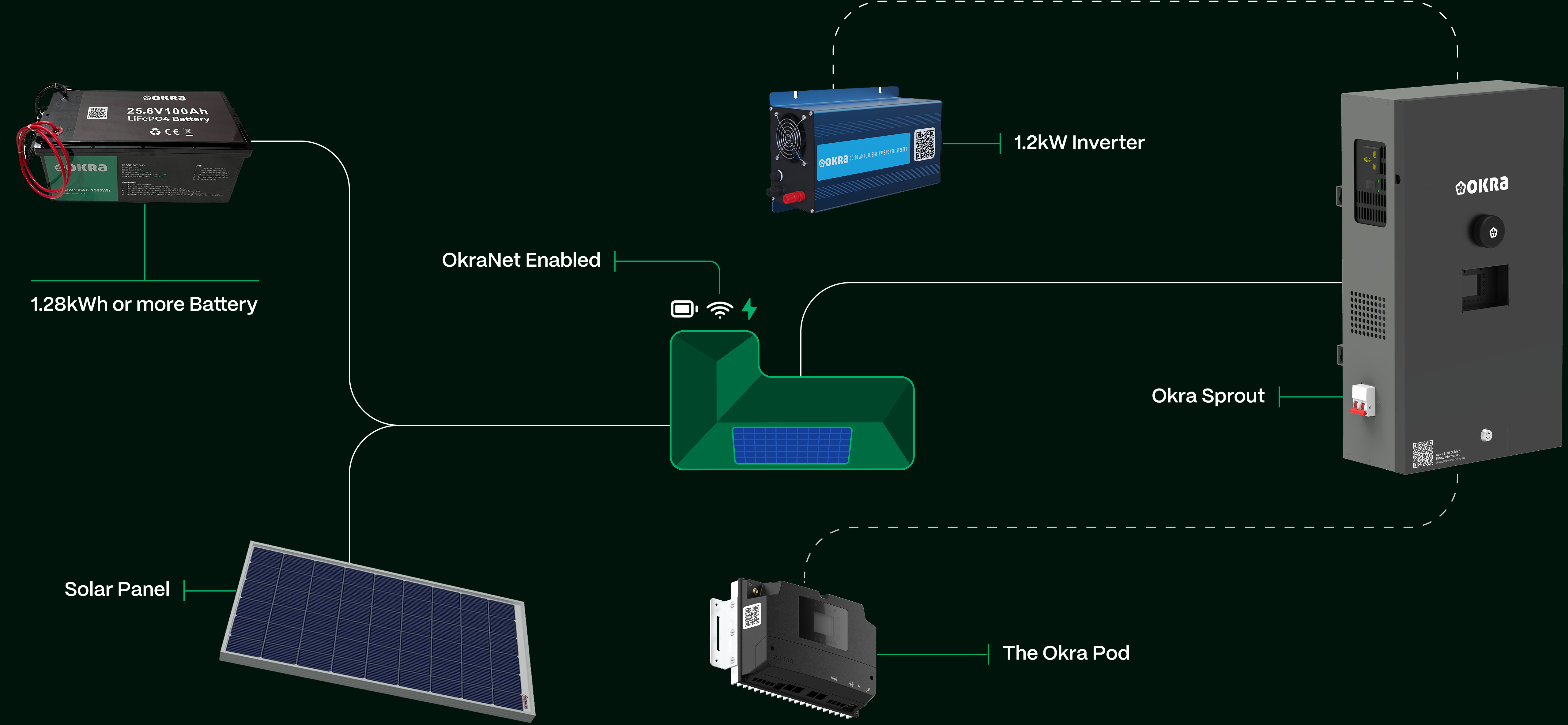

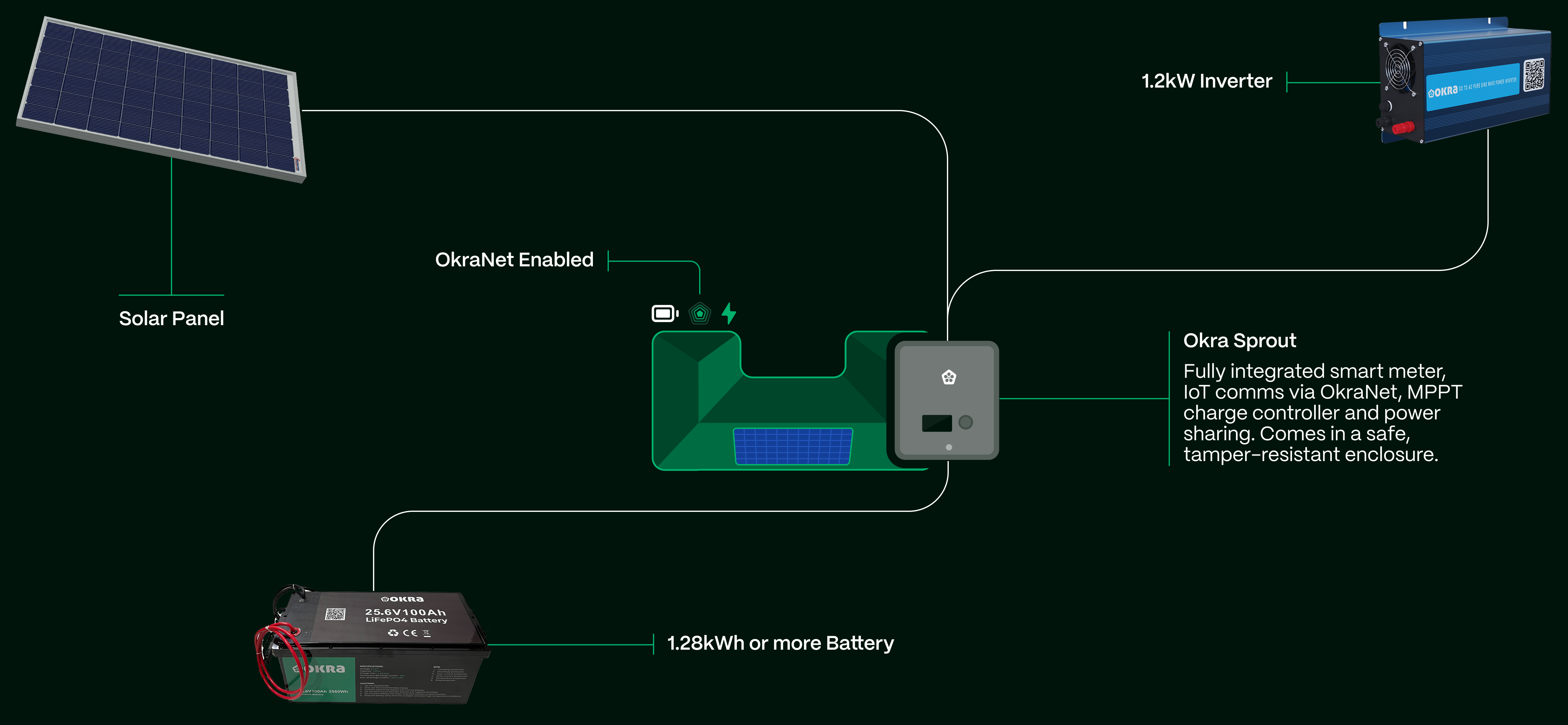

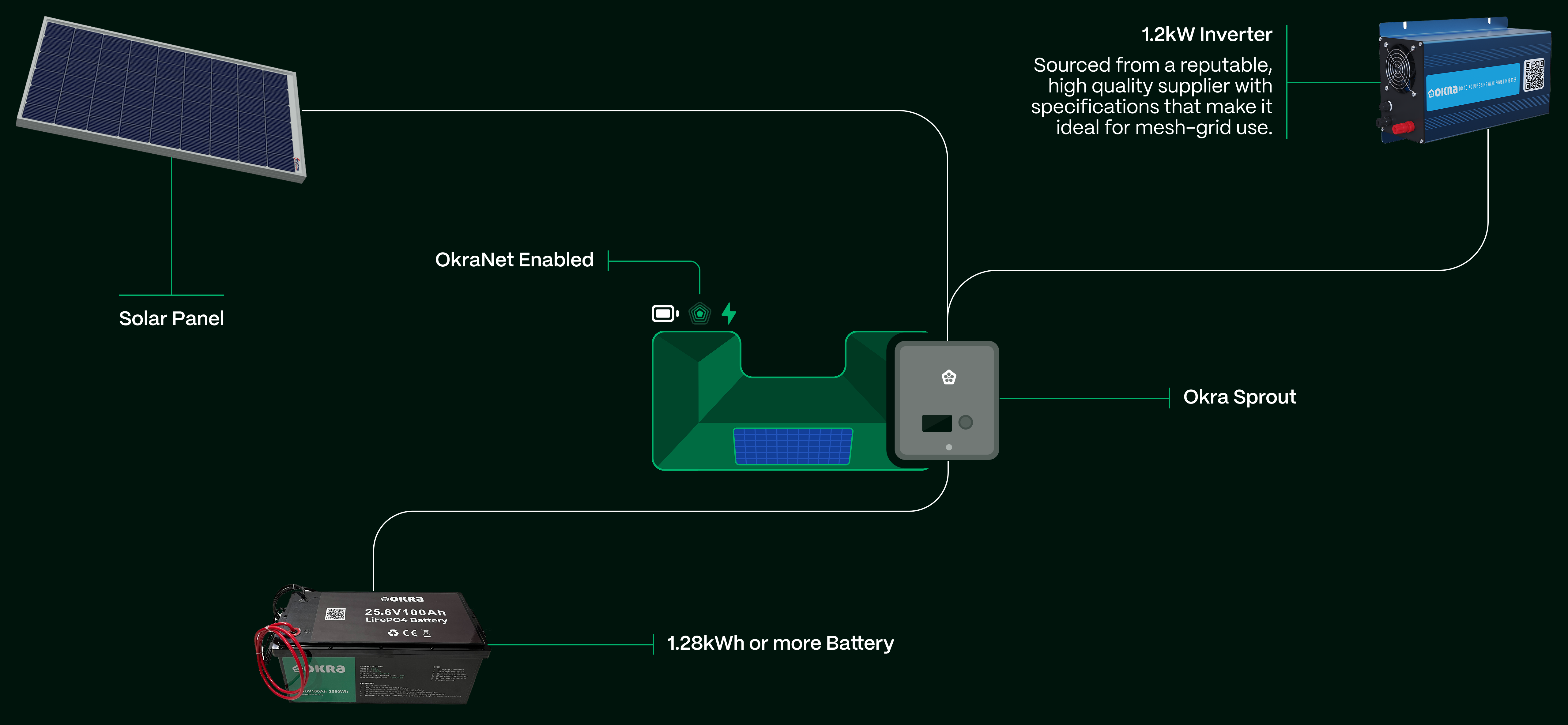

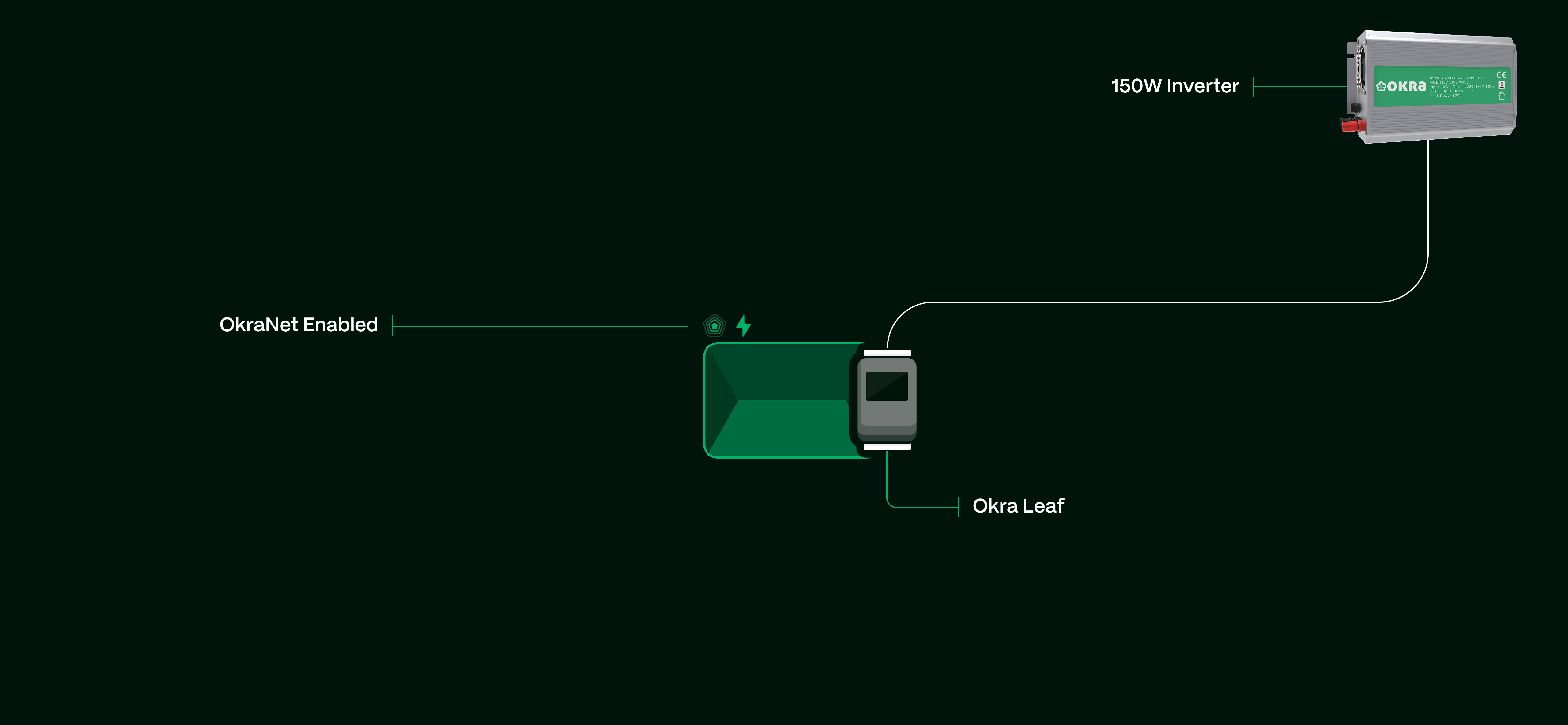

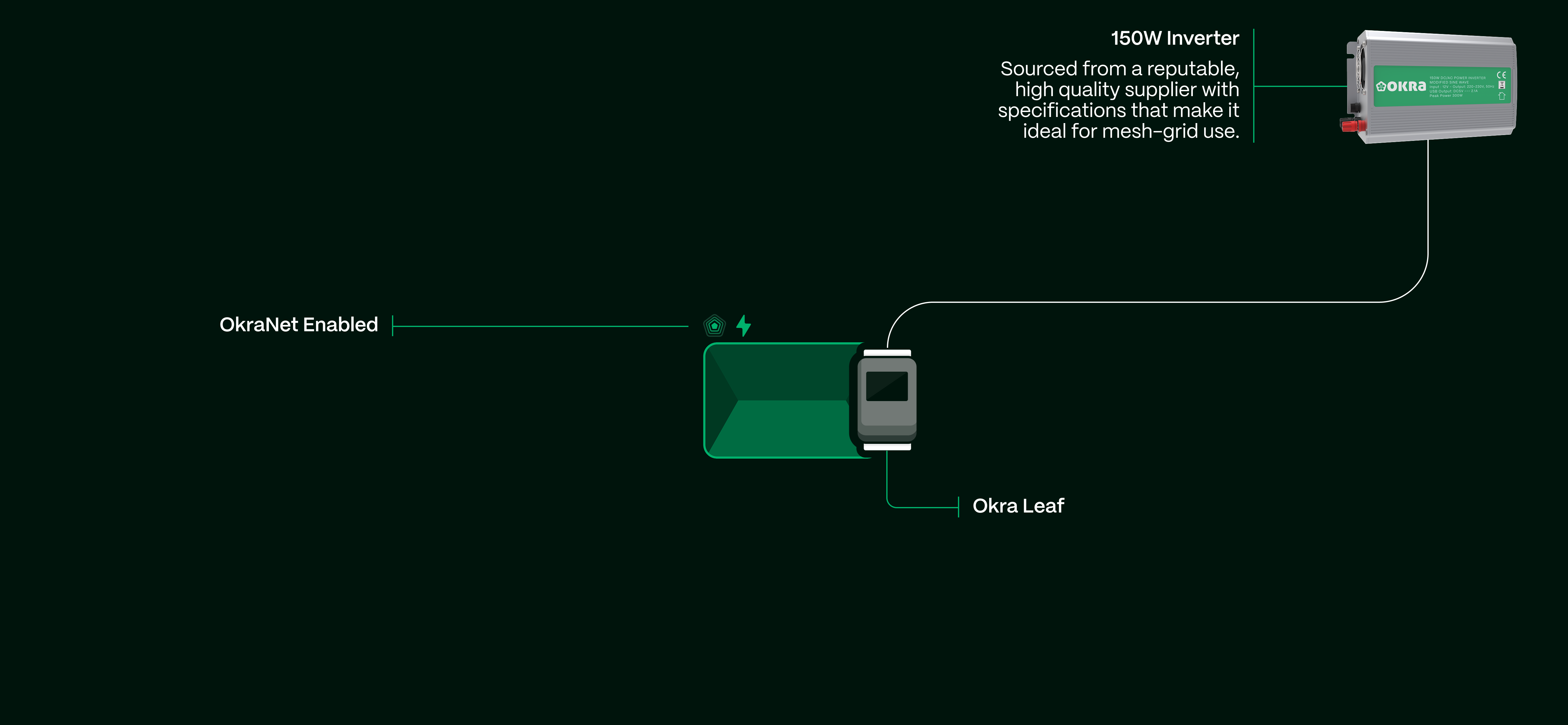

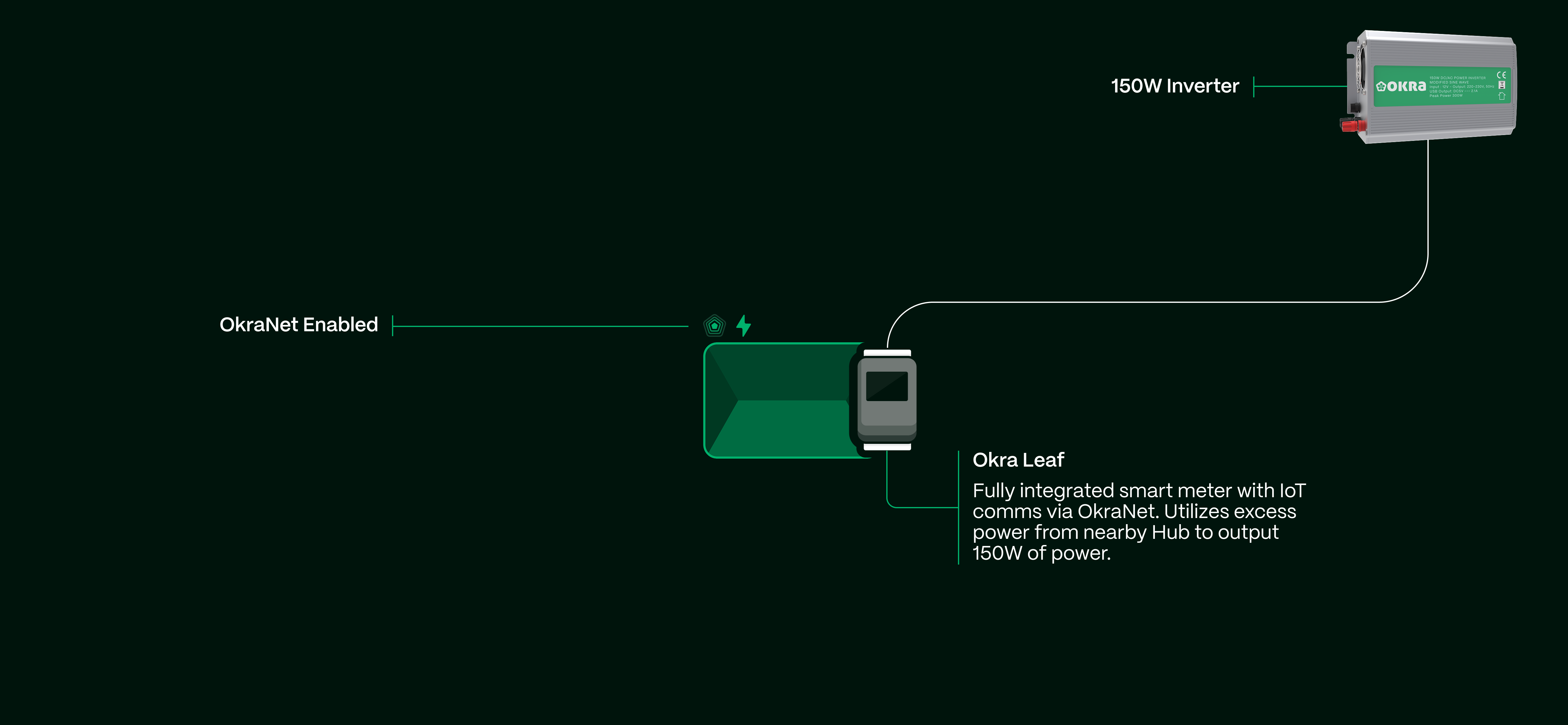

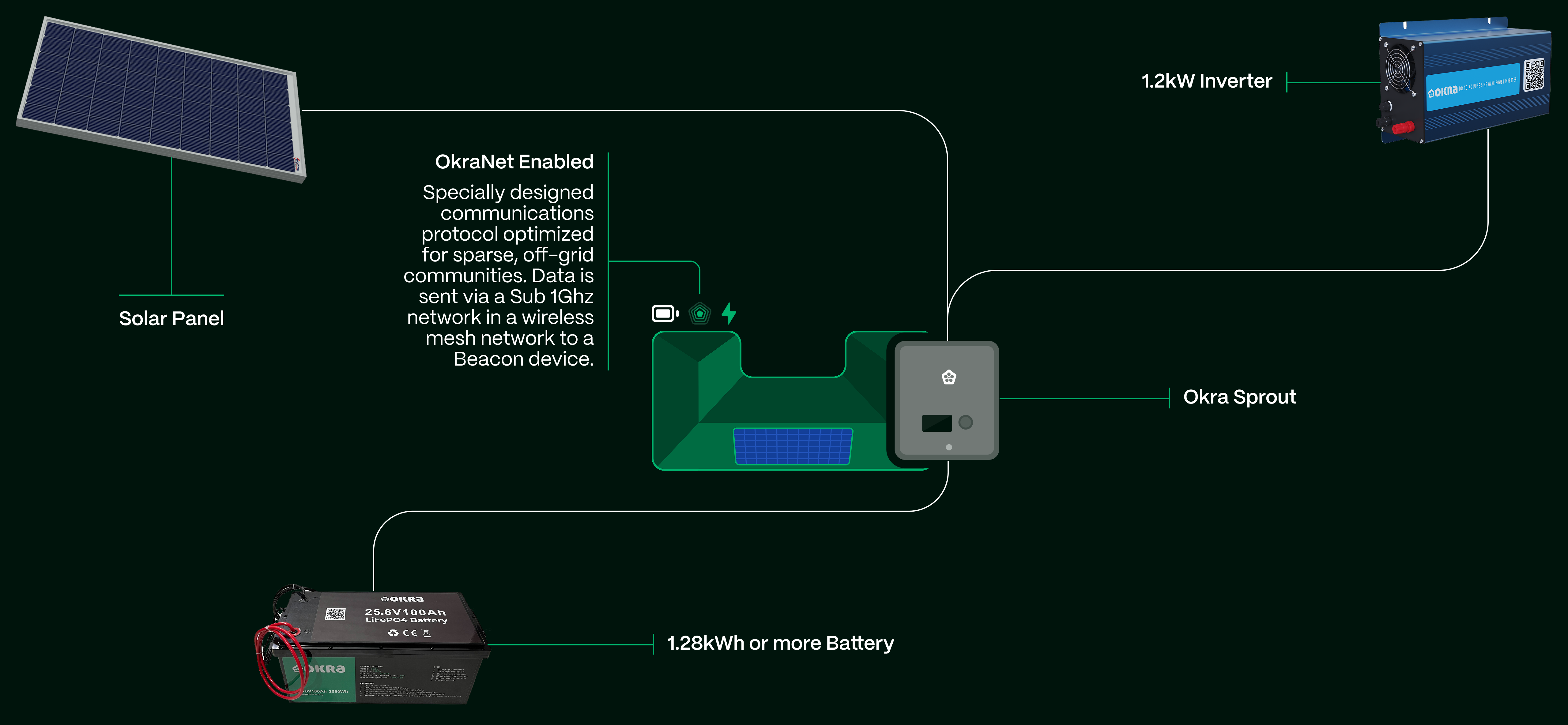

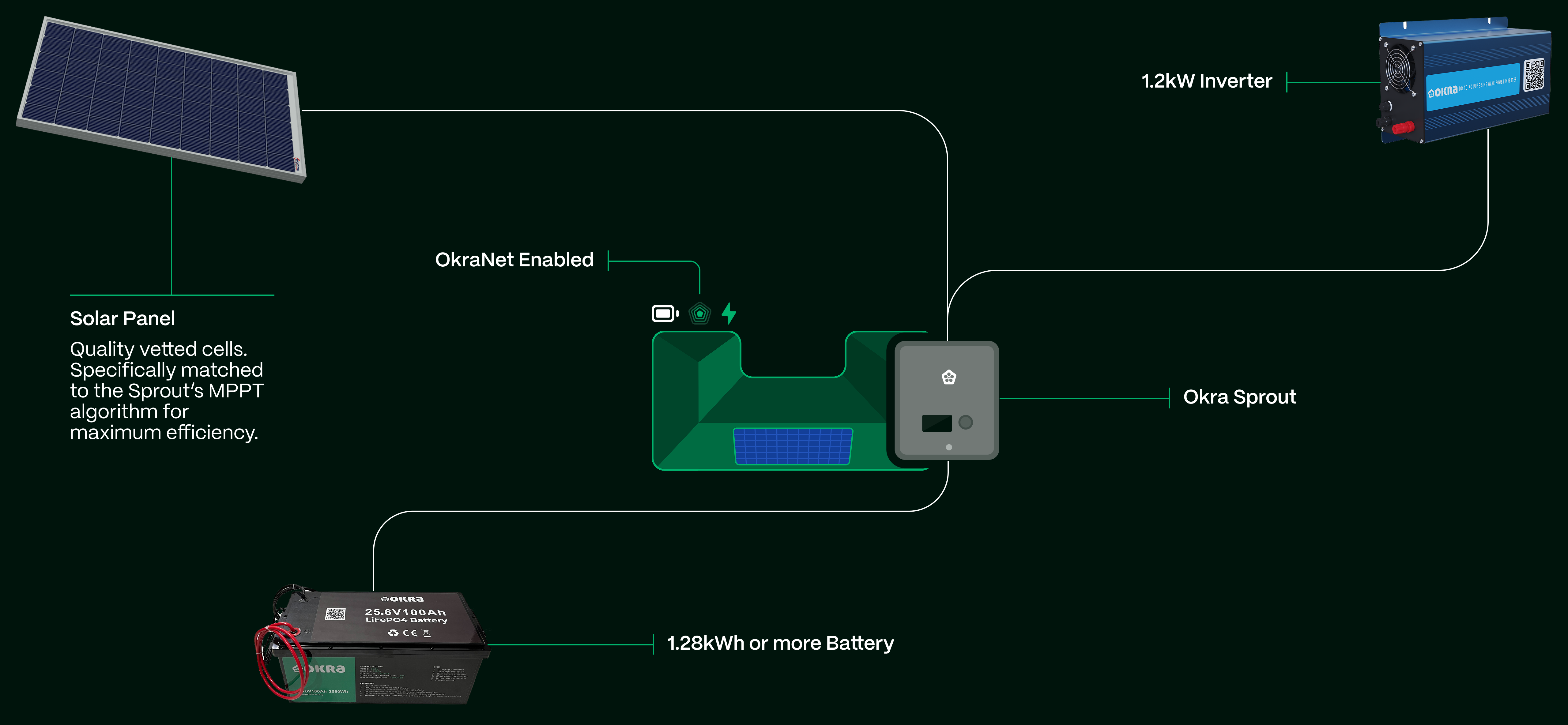

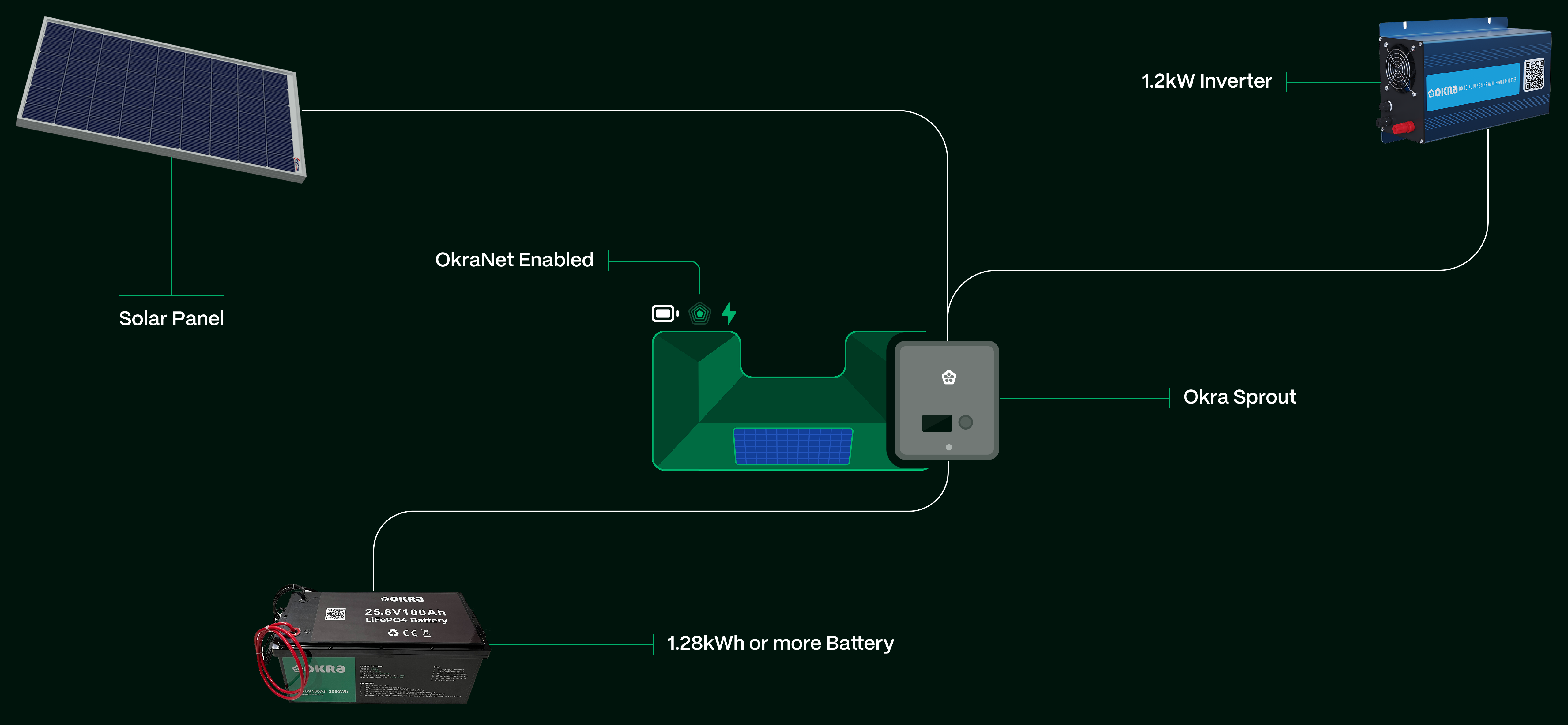

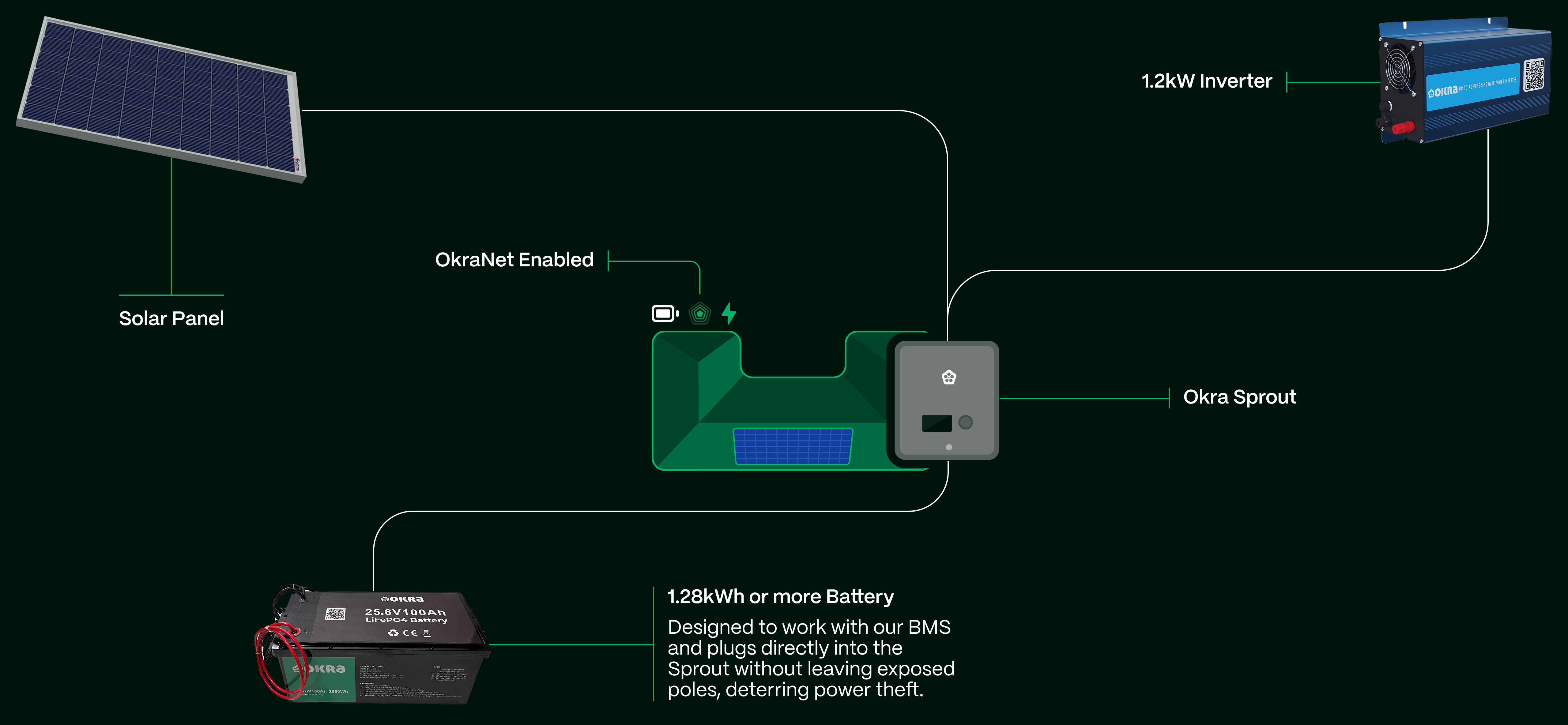

Kit Components

SVG Hover Interaction

Warranty & Support

When you purchase our mesh-grid Kits, rest assured knowing that warranty claims are streamlined and straightforward with Okra.We have a local Nigerian presence, meaning Okra replacements can be supplied quickly and guaranteed compared to alternative vendors.

In addition:

Integrated asset management and tracking: included QR codes on equipment allows tracking during install.

One point of contact: on the occasion that issues arise, they can be resolved swiftly through our after-sales support.

DARES-compliant: We’ve ensured that our components are compliant with the Site-Specific Instructions and other relevant documentation.
